ARBVX17B - ARB Intensity IQ Multi Function Spot Driving Lamps - Pair

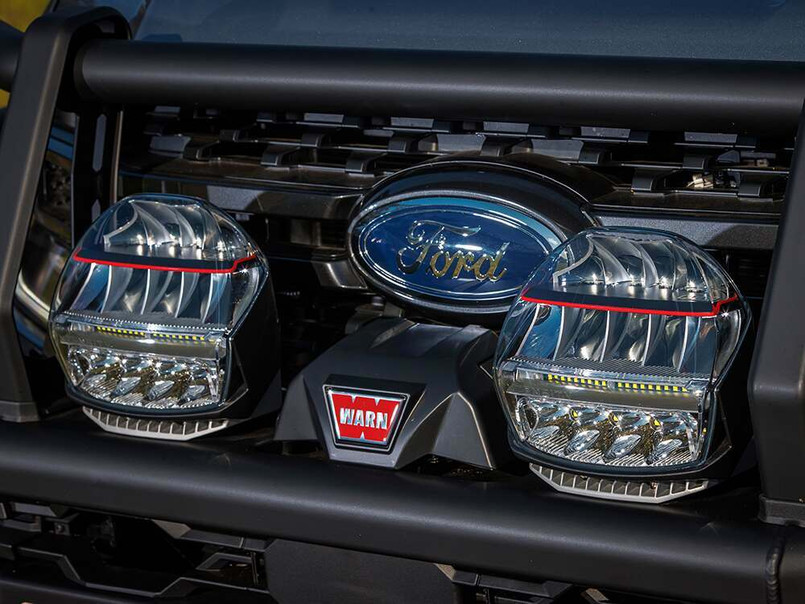

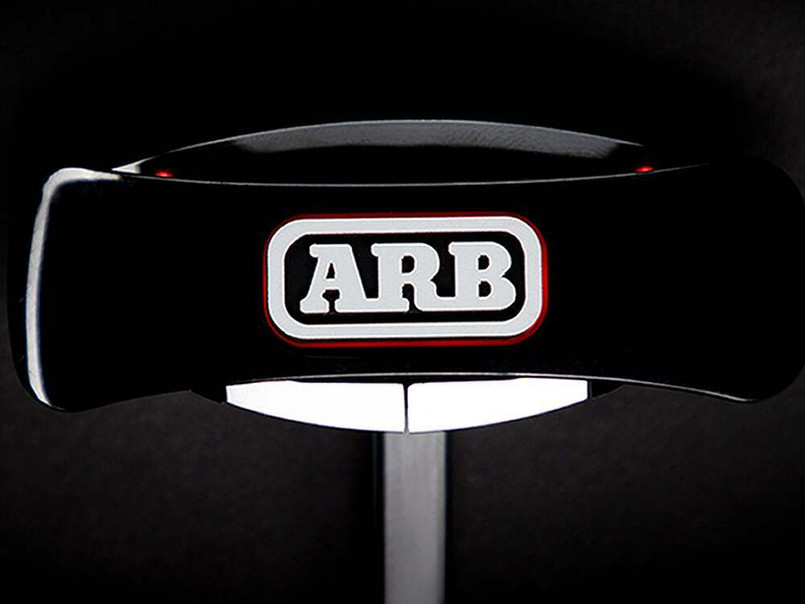

The ARB Intensity IQ has been developed from the ground up, with performance front of mind, whilst delivering a design that complements modern vehicle styling and bar work. With a subtle introduction of ARB red within the light, the free-form clear front lens, bezel-less design and CNC machined ARB logo provide a modern, classy and premium look. Packed with unique features, the Intensity IQ sets a new level of driving light design and usability.

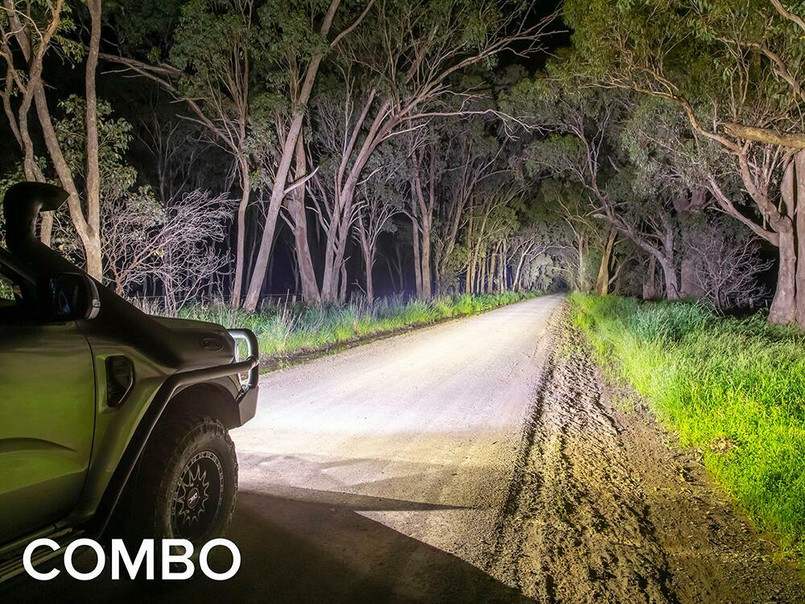

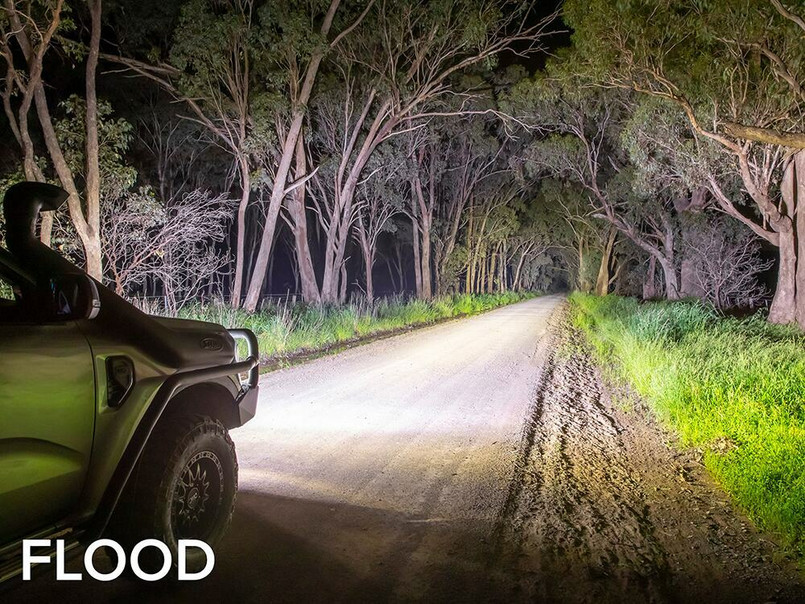

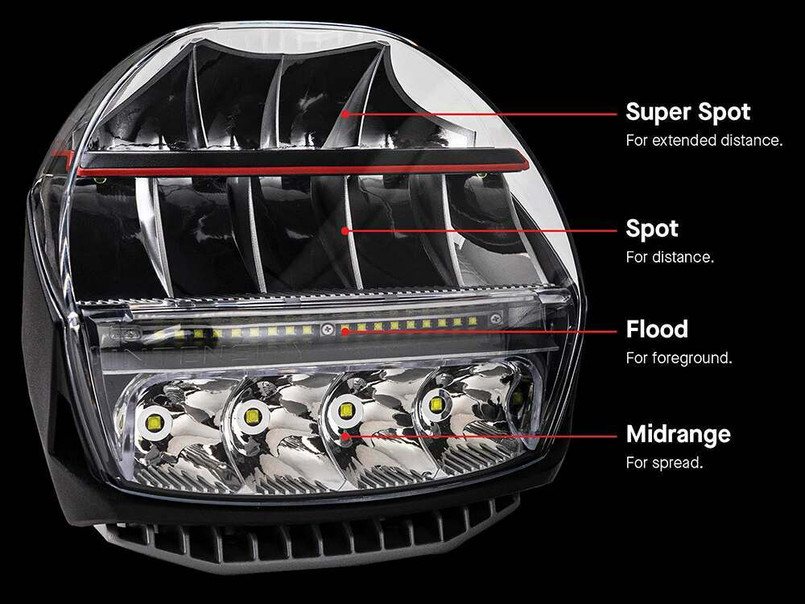

A unique 4-optic design (Super Spot, Spot, Flood and Midrange) is employed to provide virtually an unlimited choice of light beams to suit any road condition. The Super Spot and Spot optics, based on free-form reflector technology, produce an even spot beam for extended distance illumination. The Flood optic has a specially designed lens to maximise the light spread for excellent foreground visibility. The Midrange optics employ a conventional parabolic reflector to illuminate the midrange area. Furthermore, the beam pattern of each of the two lights can be independently adjusted so you could run, for example, one focused on spot and one focused on flood.

Innovative Mounting Bracket

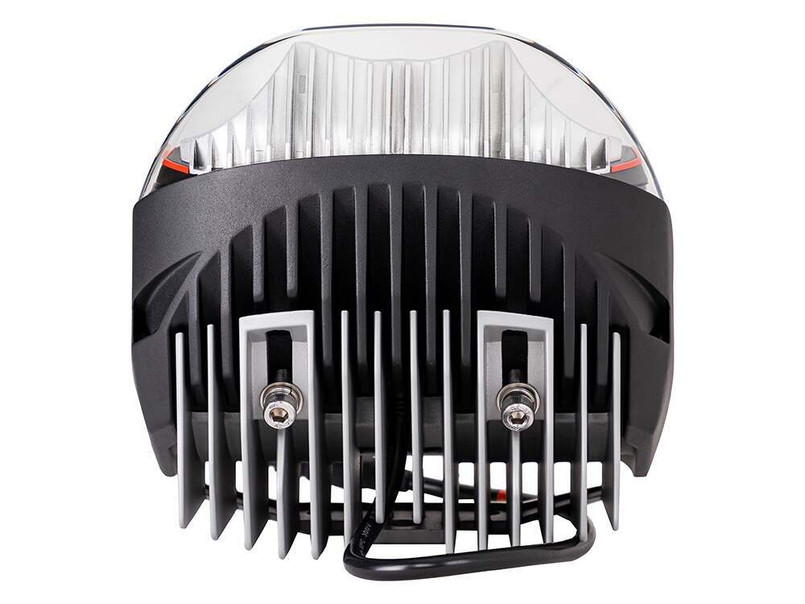

Intelligent thermal management maximises light output in all driving conditions and provides outstanding LED life expectancy. Cooling is maximised via the die cast aluminium body which acts as a massive heat sink. An innovative, sleek new mounting bracket design not only allows adjustment of light beam angle, but also provides additional mass and surface for cooling.

Customisable On-board Switch

The Intensity IQ is equipped with a switch to:
> Turn on and off the driving lights
> Provide 8 selectable and customisable pre-set light beams
> Disable courtesy light function (delayed light off after ignition off)
> Turn on/off Euro mode (light beam complying UNECE R149)
> Activate/deactivate demo mode
> Restore factory settings

Specification

LED Configuration
Super Spot: 4 x Cree XP-P LEDs
Spot: 2 x Cree XM-L3 & 3 x XP-P LEDs
Flood: 18 x Cree XT-E LEDs
Midrange: 4 x Cree XM-L3 LEDs

Input
Voltage: 11-32V Power: 170W @ 13.2V
Current: 12.9A @ 13.2V

Output
Max Spot 7,070 Lumens

Raw Lumens
Max Flood 14,060 Lumens

Output
Max Flood 6,666 Lumens

Effective Lumens
Max Combo 6,265 Lumens
Max Spot 6,613 Lumens

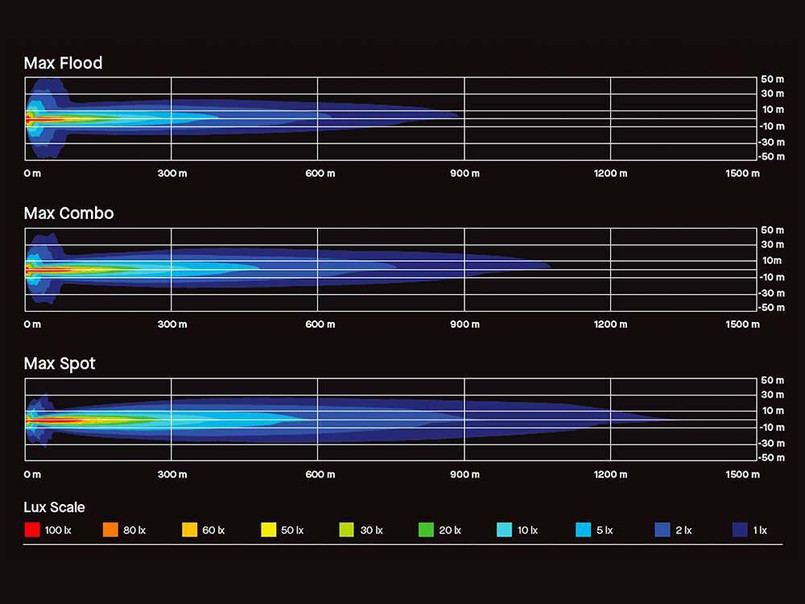

Distance @ 1 Lux
Max Spot 1,350m
(1 Pair) Max Combo 1,105m
Max Flood 900m

Operating Temp.
-40°C to +80°C

Colour Temperature
5700 - 6200K

Compliance (E-Mark Approved)
CE ECE R10, R149, UKCA, RCM, FCC, ROHS

Weight
3.8kg

Dimensions
220mm (W) x 215mm (H) x 142mm (D)

Kit Includes
2 x Digitally controlled driving lights
2 x Mounting brackets & mounting hardware kits
1 x Vehicle harness
1 x Switch with cable & connector

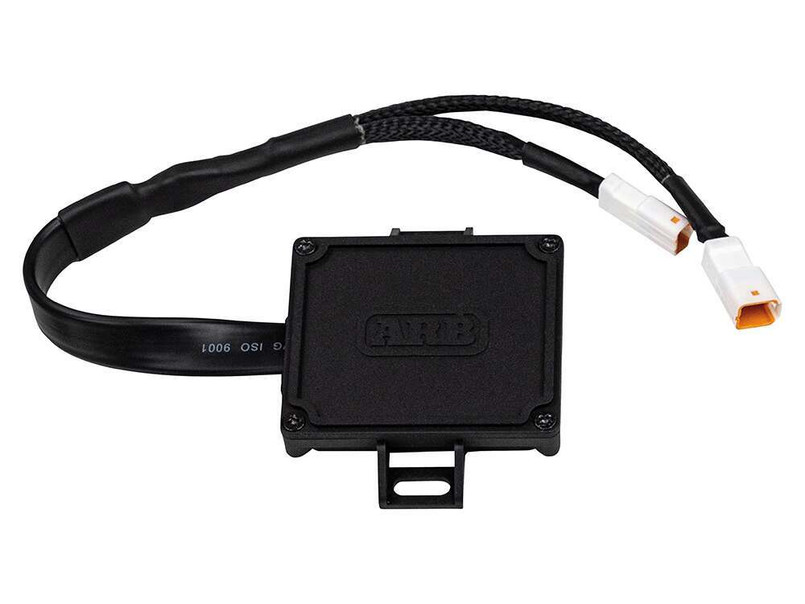

1 x Control module with cable & connector
1 x Set security bolts & tool
