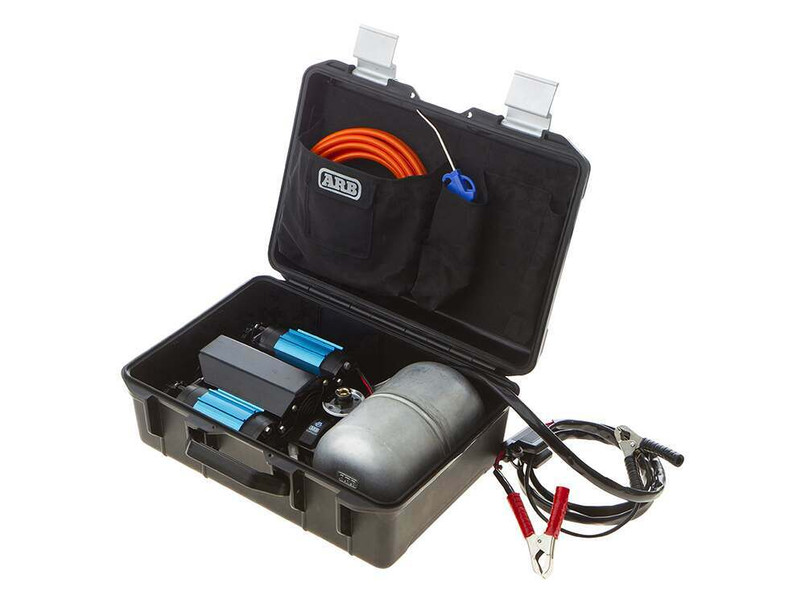

CKMTP12 - Portable Twin Compressor by ARB

12 volt



The ARB CKMTP12 portable air compressor is a compact sized yet high performance compressed air source that is intended for rapid inflation of large tyres and operation of most air powered tools rated up to 85LPM (3CFM) @ 600kPa (90PSI).

The ARB CKMTP12 is a world class recreational product designed and built to commercial / industrial standards boasting the following features:

> High flow, twin motor, dual cylinder, portable 12V DC air compressor with 4L air tank, 6m durable high temp air hose, inflation accessory kit and air blow gun
> Ultra-compact twin motor with dual cylinder design makes this the highest flowing portable compressor of its size on the market at 174LPM (6.16CFM)
> Integrated aluminium air tank and pressure switch regulates pressure between 930kPa (135PSI) and 1030kPa (150PSI) suited to most air powered tools.
> Mounted in a waterproof carry case constructed from a durable impact resistant polymer. The carry case has convenient compartments for storing the air hose and other compressor accessories.
> Ducted IP55 sealed brushed DC cooling fan and anodized aluminium motor mounting brackets effectively dissipate heat from the motors, heads and electronics allowing for a 100% duty cycle (under room temperature conditions).
> Engineered, built and individually dyno-tested in Australia from local and important components.
> Fully serviceable and all replacement parts available.
> Constructed primarily of light weight, high strength engineering grade materials, including military and aerospace standard components.
> Hard-anodized cylinder bores and PTFE (Teflon) impregnated carbon fiber piston seals for reduced friction and maximum trouble free life.
> Built with sealed components for moisture and dust resistance.
> Motors are 100% ball bearing equipped, and feature a unique linear brush pre-load system for extra long life, low heat and quiet operation throughout the life of the unit.
> Compressor pistons are equipped with high shock rated roller bearing.
> High density and high flow washable sintered bronze air filter element.
> Motors are thermal cut-out protected against damage caused by extreme temperature use.

Net Weight - 15kg
Dimension - (W x H x L) 355 x 186 x 478
Type - Twin Compressor
Tyre Inflation - Fastest
DC Voltage - 12V
Duty Cycle to [%] - 100%
Pressure to - 0kPA
Current rating at 20°C - 28.4A
Volume Flow Up To - 174.4 l/min
Pressure to [kPA] - 200
Current rating at 20°C - 50.4A
Volume Flow Up To - 131.8 l/min
Switch - With pressure differential switch
Overheating Protection - Yes
Filter Type - Particulate Filter
