DA1069SS - Front Door Hinge Kit for Defender with Stainless Steel Fittings (Early Style Door Hinges)

This kit uses early (pre-2000) style Door Hinges - Later TD5 and Puma Vehicles were fitted with heavier duty hinges - Please Check Out DA1070W if you want the later, slightly more expensive kit using the heavier hinges.

This kit can be fitted to any year of Land Rover Defender from 1983-2016 although this particular style was only fitted up to 1999.

The kit consists of the following Hinges:



MXC8284 - Right Hand Upper Hinge

MXC8285 - Left Hand Upper Hinge

MXC8282 - Right Hand Lower Hinge

MXC8283 - Left Hand Lower Hinge

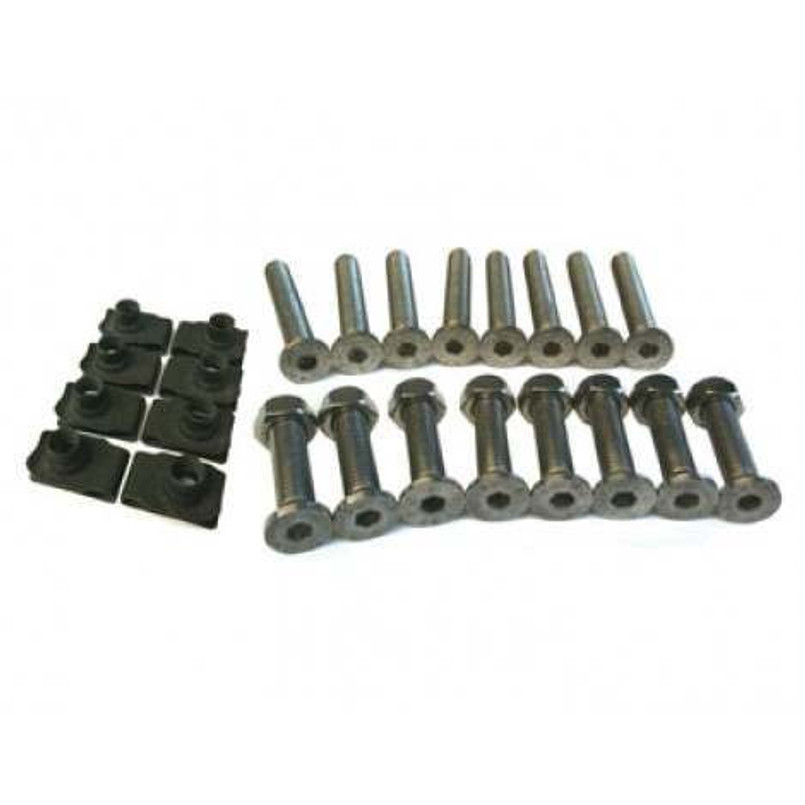

It Also includes DA1132 - Stainless Steel Nuts, Bolts, Washers and Fixings:



8 x nyloc Nuts, 8 x M8 x 35mm allen head bolts,

8 x M8 x 55mm countersunk allen head bolts

8 x M8 J-clip (carbon and phosphor coated to give 450 salt hour life)

16 x M8 flat washers



Along with these are 4 plastic washers for the hinge to attach to your door and 4 washer to your pillar without any rubbing of the paintwork.

LR Centre have sold well over 3000 door hinge kits over the past 10 years and we're proud to say the quality of these hinges stands up to the genuine offering whilst the addition of the stainless steel bolts and nuts is a vast improvement on the genuine ones which end up rusty before long. We do offer an budget kit which does have mild steel nuts and bolt, if you'd prefer this then please check out DA1069
