DA3731 - Sentinel 9" Elite LED Lamp with Position Light - Slim Mount - by Lazer

With Position Light & Slim Mount / Single Light



Lazer Part Number - 0S9-PL-ELITE-SM

The Sentinel range are 9” round lights that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamp name. The Sentinel Elite product comes available with a sleek black internal appearance, and a combination of 32 high power LEDs, representing the very best lighting performance as expected from a product bearing the ‘Elite’ tag. Lighting performance aside, meticulous product styling ensures this is a product that stands out for all the right reasons.

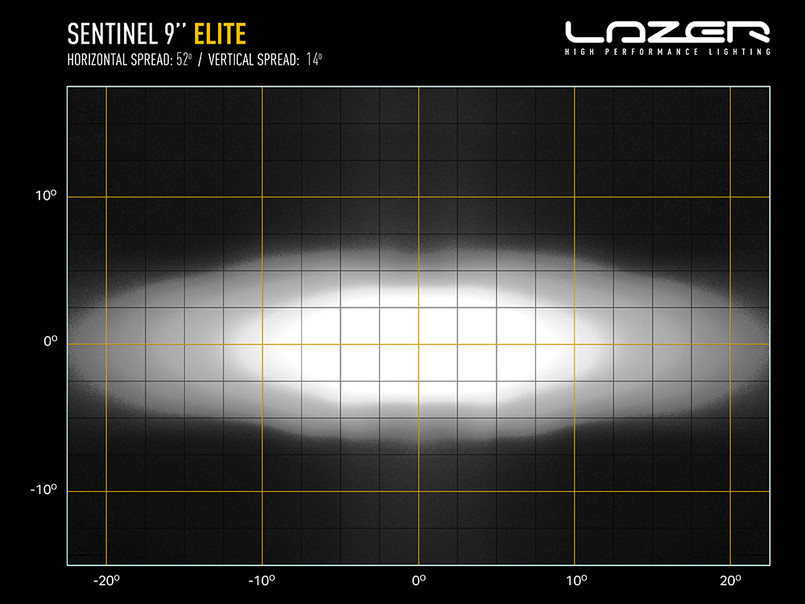

Emitting 15,232 raw lumens, the lights deliver 1 lux to 742m. However, it is in the 52 degree horizontal spread of light, and visibility at the sides of the road or track in the mid to long-range, that the Sentinel Elite really comes into its own. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead.

The light is UNECE approved to Regulation 112 as a high beam driving light, through adoption of Lazer’s dual output E-Boost technology; operating at 100% the light output is beyond the permissible limit of the ECE regulations, so removing the supplied Boost Cap from the back of the light reduces the light output to be within the allowable limit.

The stealth design of the black variant of the Sentinel light is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. The aesthetic appeal of the lamp is furthered through the ‘slim’ diecast aluminium mounting bracket, with Sentinel stamp, which like the lights themselves has an automotive-grade pre-treatment before being powder coated satin black. The result is a premium finish on the product that is fully protected against aesthetic deterioration or corrosion.

As with all Lazer products, the Sentinel lights have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.

Key Features

> Combination of 32 premium ‘bin’ LEDs
> Black PCB and bezel detail result in stealth black internal appearance
> 5000K LED colour temperature and 80CRI maximises sharpness and definition
> Ultra-reflective vacuum-metallised spot and wide optics
> UNECE Reg 112 Class B Driving Light, approved for on-road high beam (E-Boost technology)
> Contemporary light design
> Supplied with ‘slim’ diecast aluminium mounting bracket featuring Sentinel stamp
> Electronic thermal management system optimises light output to preserve longevity of the LEDs
> Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
> CAE optimised heatsink offers improved thermal dynamics
> Over voltage protected
> Reverse polarity protected
> ‘Unbreakable’ polycarbonate lens with hardcoat lacquer
> A2 stainless steel fasteners with automotive grade black coating
> Supplied with Lazer branded black lens cover
> UNECE approved Reg 10
> IP68 watertight – 1.5m submersion (30mins)
> 5-year warranty
> Supplied with pre-wired male/female 2-pin Superseal connectors
> Designed & manufactured in UK
