DA7487 - Short Circuit Diagnostic Kit - By Laser

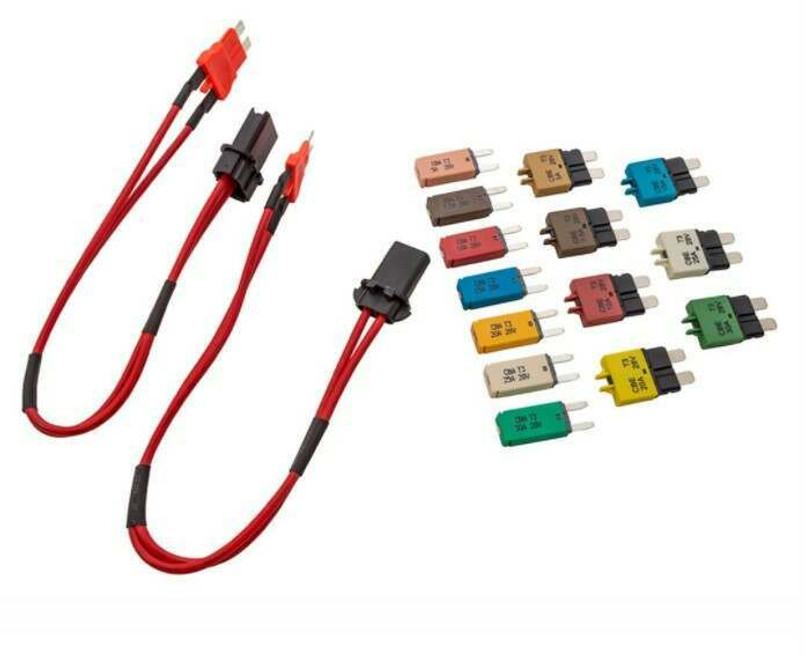

7 standard blade manually resettable circuit breaker fuses & 7 mini blade manually resettable circuit breaker fuses.



Tracing a short circuit can be a very time consuming exercise. This Short Circuit Diagnostic Kit provides the solution in the form of a set of circuit breaker fuses that are designed to fit in place of the traditional fuse. The circuit breaker will safely break the circuit when an overload is detected just like a conventional fuse but unlike a conventional fuse it is manually resettable allowing the technician to reset the circuit breaker fuse to run their tests as many times as they need.

The kit provides resettable fuses for both standard and mini size blade fuses. Where space is really tight the set includes two 300mm extension leads which allow the circuit breaker fuse to be connected where space in the fuse box is tight.

> Contents includes: 7 standard blade manually resettable circuit breaker fuses & 7 mini blade manually resettable circuit breaker fuses.
> Fuse ranges: 5A, 7.5A, 10A, 15A, 20A, 25A, 30A.
> 300mm (12") extension loop leads for better access for use with both blade sizes.
