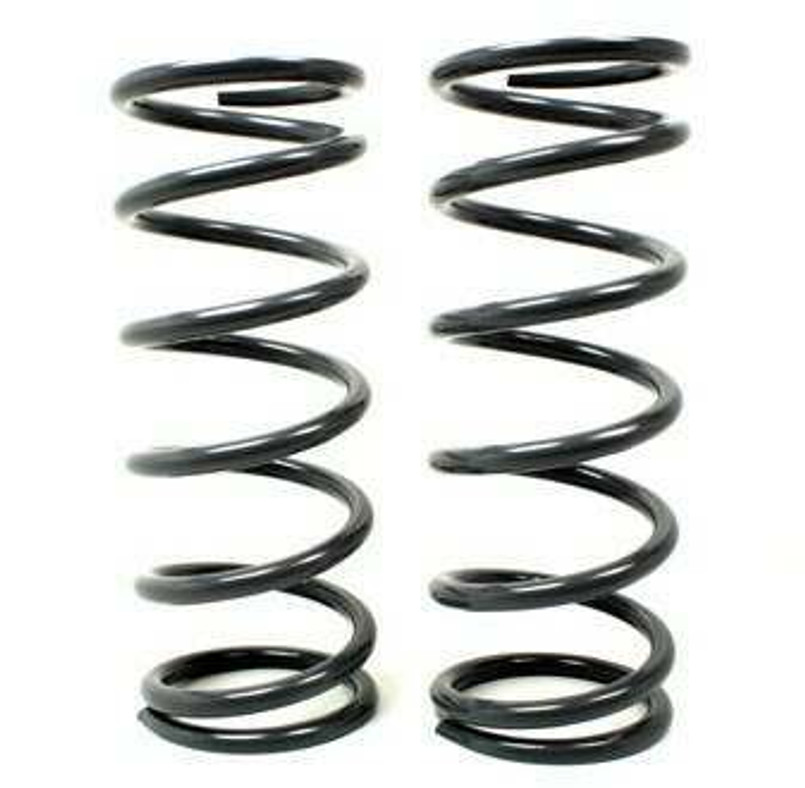

TF015 - Coil Springs 2 Inch (50mm) For Land Rover Defender 90, Discovery 1 and Range Rover Classic - Heavy Load (FRONT) Light Load (REAR)

HEAVY LOAD FRONT/LIGHT LOAD REAR SPRINGS - D1/DEF ALL/RRC

Heavy load front coil springs are designed to provide 2" of lift on vehicles with around 100kg of additional equipment such as a heavy-duty winch & bumper and other equipment.

For example, use TF015 springs on Defenders fitted with a Heavy-duty winch, bumper and bull bar. More than 2" of lift will be achieved when less than 100kg of additional equipment is fitted.

No additional equipment fitted will lead to a much greater lift possibly requiring attention to driveshaft angles and steering geometry.



Light load rear coil springs. This spring is also suitable for the rear of a standard Defender 90 with little or no additional equipment fitted, certainly no more than 100kg and will give approx 2ﾔ lift. It should only be used on the rear of Discovery 1 and Range Rover Classic where no additional equipment is fitted and where less than a 2ﾔ lift is acceptable. In most cases the TF018 is more suitable for a Discovery 1 and Range Rover Classic. This spring would most likely be combined with TF014.
